1.Time Saving Heavy Duty Metal Wire Mesh Loom Stable Running 1600D Introduction:
The Universal Multi-Functional Heavy-Duty Metal Braiding Machine is a high-performance industrial equipment designed for braiding various types of metal wires such as stainless steel, copper, aluminum, and galvanized steel. It integrates advanced mechanical structure, precision control, and modular design, making it suitable for producing high-strength, flexible, and corrosion-resistant braided products.
2.Time Saving Heavy Duty Metal Wire Mesh Loom Stable Running 1600D Overview:
The Universal Multi-Functional Heavy-Duty Metal Braiding Machine offers exceptional flexibility, strength, and performance for industrial metal braiding applications. Its advanced control technology, durable design, and multi-functional adaptability make it an ideal choice for manufacturers seeking efficiency, precision, and reliability in metal braiding production.
3. Time Saving Heavy Duty Metal Wire Mesh Loom Stable Running 1600D Key Features & Advantages:
· Precision Weaving: Superior tension control ensures exceptional mesh uniformity, allowing for accurate and stable weaving of fabrics within a range of 40 to 400 mesh using standard wire diameters.
· High Efficiency: With a maximum operational speed of 120 rpm, it boosts production efficiency by over 70% compared to conventional machinery.
· User-Friendly Operation: Critical parameters like mesh count and tension settings are digitally set and stored via a touch-screen interface, ensuring simple operation, precise adjustments, and excellent repeatability.
· Versatility: Capable of weaving various complex patterns, including but not limited to Plain Weave, Twill Weave, and Dutch Weave.
· Enhanced Productivity: The integrated Continuous Web Removal (Uninterrupted Doffing) Systemand digital length display significantly reduce non-productive auxiliary time, maximizing overall equipment effectiveness (OEE).
· Reliability & Durability: Designed for longevity and stable operation, it features high-quality components such as a Bearing-Type Crankshaft, making it suitable for sustained continuous production.
4. Time Saving Heavy Duty Metal Wire Mesh Loom Stable Running 1600D Applications:
The high-quality metal mesh produced by this machine is widely used in applications demanding precise filtration, screening, and separation across various industries, including:
· Petroleum & Chemical Processing: Filters, screens, separators.
· Aerospace: High-temperature filtration, shielding meshes, safety guards.
· Mechanical Manufacturing: Precision filters, vibrating screens.
· Automotive Industry: Catalyst support meshes, filter elements.
· Electronics: EMI/RFI shielding, protective guards.
5.Products Parameter:
| Feature Category | Light-duty Loom (Model B) | Heavy-duty Loom (Model D) |
| Mesh Width | 1300mm 1600mm | 1300mm 1600mm |
| Harness System | Positive (Overhead) | Negative (Bottom Cam) |
| Web Removal Method / Doffing Method | Continuous Web Removal or Direct Winding | Continuous Web Removal or Direct Winding |
| Wire Diameter Range | Continuous Web Removal | 0.01 - 0.2 mm | 0.1 - 0.6 mm |
| Direct Winding | 0.03 - 0.2 mm | 0.1 - 0.3 mm |
| Mesh Count Range | Plain Weave | 30 - 500 mesh/inch | 10 - 100 mesh/inch |
| Twill Weave | 30 - 635 mesh/inch | 20 - 100 mesh/inch |
| Dutch Weave | 100 - 2300 mesh/inch | 30 - 500 mesh/inch |
| Beating-Up Frequency | Max. 120 r/h | Max. 100 r/h |
| Motor Power | 2.2kw | 2.2kw |
| Standard Configuration | Crankshaft Type | Bushing Type |
| Side Frames | Casting Wall Plates |
| Tension System | Tension Sensor |
| Rapier Head Type | Carbon Fiber |
| Drive Type | Fully Digital Control (CNC) |

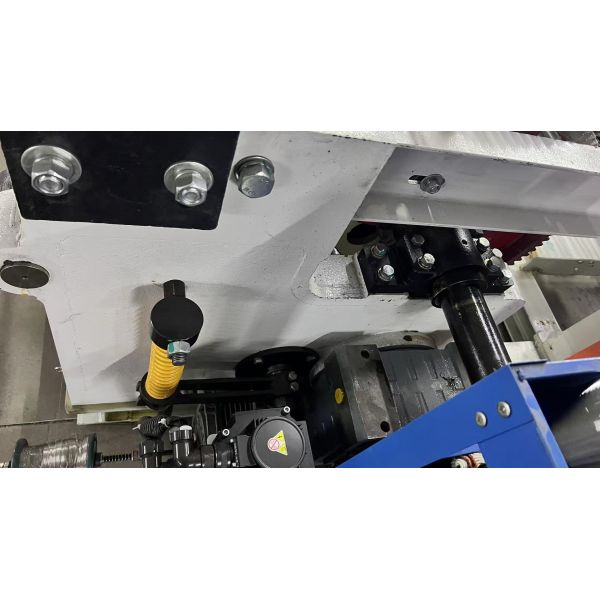

6. Detailed Images:
