Precision Wire Mesh Weaving Machine — BWR1600D

The BWR1600D is our heavy-duty, precision wire-mesh weaving platform engineered for stable, repeatable output on demanding applications such as filtration/screening media, industrial protection, and architectural meshes. Built on a rigid 1,600 mm chassis with configurable modules, it combines servo-driven motion, closed-loop tension control, and recipe-based changeovers to deliver tight dimensional consistency and fast setup across multiple weave types.

1. Key highlights

• Heavy-duty precision: Reinforced frame and drivetrain for long, continuous runs with high repeatability.
• Closed-loop tension: Consistent wire tension for flatter mesh surfaces and cleaner edges.
• Quick changeovers: HMI recipe library and per-axis adjustments reduce setup time between specs.
• Multi-weave capability: Supports plain, twill, and Dutch weaves with stable quality.
• Configurable line: Compatible with uncoiling, pre-straightening, cutting, edge-folding, take-up, and inline QC options.
• Traceability-ready: ERP-linked orders/BOMs enable visibility of production progress and material flow.

2. Typical specifications (customizable by order)

• Working width: 1,600 mm

• Wire diameter range: 0.10–0.60 mm (material-dependent)

• Supported weaves: Plain / Twill / Dutch

• Representative mesh ranges: Plain ~10–100 mesh/in; Twill ~20–100 mesh/in; Dutch ~30–500 mesh/in (project-specific)

• Power & controls: Industrial PLC + HMI; safety interlocks; remote diagnostic support

If you share your target mesh count, wire material/diameter, and output goals, we’ll provide a tuned BWR1600D configuration and performance estimate for your line.

3. Products Parameter:

6. Detailed Images:

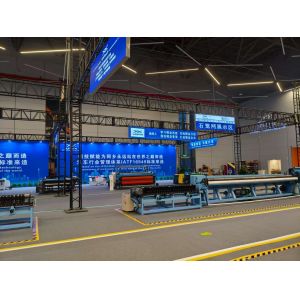

Precision Wire Mesh Loom Machine

Wire Mesh Loom Machine 1600D

Loom wire mesh making machine

Precision Wire Mesh Loom Machine Images
