Single Wire Chain Link Machine Fully Automated 18 Ft × 18 Ft Space Required

Name: Single Wire Chain Link Machine Fully Automated 18 Ft 18 Ft Space Required
Brand: APBWR
Price: 5000 USD

China Single Wire Chain Link Machine Fully Automated 18 Ft × 18 Ft Space Required factory

Brand Name : APBWR

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 UNIT

Payment Terms : L/C,D/A,D/P,T/T

Delivery Time : 14-21Days

Model Number : 01

Price : $5000-50000

Supply Ability : 1000+/year

Packaging Details : Pallets or wooden crates as per customer's requirements.

Feature : Easy Operation

Mesh Opening : According to your requirement

Mesh Width : 2M, 2.5M, 3M, 4M, 5M, 6M

Key Selling Points : Automatic

Wire Dia : 1.8-4.0mm

Machine Type : Chain Link Fence Making Machine

Main Motor : Housine 3.8 KW, Panasonic 5.0 KW,Delta 4.5 KW,Siemens 5.0 KW

Space required 18 ft × 18 ft : 18 ft × 18 ft

Contact Now

Product Parameters

Technical Description:

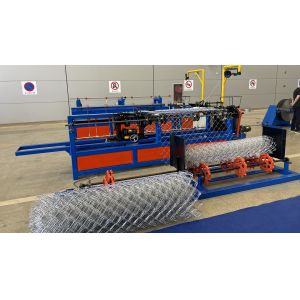

· Chain Link Machine for manufacturing Chain Link Fence of different size. The wire is taken in from the payoff stand and passed through the dies where the diamond size takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically throw in the winding shaft and automatic weaving in chain link mesh as per your specific length. After weaving machine will cut that wire automatically and move for the next link.

· The mesh will go on to the next step----Twisted or Kunckle the edge according to your requirement. (We will give you both twisted and Kunckle mold, then you can install the right one)

· The last step is roller or compact roll according to your requirement. (You can choose roller parts or compact part as your requirement; we will give you only one part)

· Machine Video show:

Note: The machine is controlled by PLC, so only one person is needed to operate it. (In fact, one person can operate two sets of machines at the same time.

Category	Details
Product Name	Single wire Fully Automatic Chain Link Machine
General Specifications	- Mesh Width: 2M, 2.5M, 3M, 4M, 5M, 6M - Wire Diameter: 1.8mm to 4.0mm - Mesh Size: 25mm to 100mm - Motor Brands: Customizable (Housine/Panasonic/Delta/Siemens)
Machine Components	- Electric Panel - Wire Pay-off Stand (500 KG capacity) - Weaving & Cutting Motor: Choice 1: Housine 3.8 KW Choice 2: Panasonic 5.0 KW Choice 3: Delta 4.5 KW Choice 4: Siemens 5.0 KW - Twist/Knuckle parts - Auto Roller/Auto compact - Wire welder (Optional)
Safety & Control	- Extra Transformer - Remote control system - 6 additional motors with gear attached
Technical Specification	- Space required: 18 ft × 18 ft
Services	Assistance with import, forwarding, and direct shipping to customer’s factory
