Stainless Steel Full CNC Light Duty Metal Wire Mesh Machiery
1.Full CNC Light Duty Metal Wire Mesh Machiery Introduction
Engineered for accuracy and uptime, the CNC Wire Cloth Loom uses industrial PLC control with servo drives to synchronize critical motions. The platform supports plain, twill and Dutch patterns, and typical ranges include fine wire capability down to 0.01 mm (material dependent). A stable mechanical base and balanced drivetrain minimize vibration for cleaner selvedges and flatter cloth.
2. Full CNC Light Duty Metal Wire Mesh Machiery Details
Noise-damped kinematics and a reinforced frame reduce operator exposure and extend service life. Maintenance is simplified with standardized wear parts and clear access to guides and take-up assemblies. Optional auto-lubrication and remote diagnostics help cut routine downtime and accelerate recovery when issues arise.
3. Full CNC Light Duty Metal Wire Mesh Machiery Specifications
4. Full CNC Light Duty Metal Wire Mesh Machiery Parameter:
| Specification | Value |
| Working Width | 1300 mm |
| Wire Diameter | Ø 0.10–0.60 mm |
| Weave Types | Plain / Twill / Dutch |
| Control | PLC + HMI, fully CNC coordinated |
| Tension | Closed-loop feedback |
| Options | Uncoiler / Pre-Straightener / Cutting / Take-up |
5.Full CNC Light Duty Metal Wire Mesh Machiery Advantages & Service
Key advantages: HMI recipe governance for fast, repeatable changeovers; Energy-efficient drive coordination and low-noise operation; Modular stations to match your takt time and staffing model; Service-friendly layout with standardized consumables. Optional remote diagnostics and training packages support fast ramp-up and sustained OEE.
6. Material Used for Full CNC Light Duty Metal Wire Mesh Machiery: Stainless Steel Mesh
Stainless steel mesh is woven with high - quality wire materials of grades such as 304, 304L, 316, 316L, 430, 317L, and 904L. It has excellent characteristics of acid and alkali resistance and corrosion resistance.
| Specification Model | Wire Diameter (mm) | Maximum Width (mm) | Material |
| 6 | 0.6 - 0.8 | 2500 | 304/304L/316/316L |
| 8 | 0.6 - 0.8 | 2500 | 304/304L/316/316L |
| 10 | 0.5 - 0.7 | 2500 | 304/304L/316/316L |
| 12 | 0.4 - 0.6 | 2500 | 304/304L/316/316L |
| 14 | 0.5 | 2500 | 304/304L/316/316L |
| 12×64 | 0.58×0.4 | 2500 | 304/304L/316/316L |
| 14×88 | 0.5×0.33 | 2500 | 304/304L/316/316L |
| 24×110 | 0.35×0.25 | 2500 | 304/304L/316/316L |
| Mesh Count | Wire Diameter | Mesh Size | Open Area Ratio (%) | Maximum Width (mm) | Thickness (mm) |
| Inch | mm | Inch | mm |
|
|
|
| 1×1 | 0.1570 | 4.0000 | 0.8400 | 21.4000 | 71.0 | 2000 | 8.00 |
| 3×3 | 0.0790 | 2.0000 | 0.2500 | 6.4000 | 58.0 | 2000 | 4.00 |
| 4×4 | 0.0630 | 1.6000 | 0.1870 | 4.7500 | 56.0 | 2000 | 3.20 |
| 6×6 | 0.0470 | 1.2000 | 0.1200 | 3.0300 | 51.3 | 2000 | 2.40 |
| 8×8 | 0.4300 | 1.1000 | 0.0800 | 2.0800 | 42.8 | 2000 | 2.20 |
| 10×10 | 0.0390 | 1.0000 | 0.0600 | 1.5400 | 36.8 | 2000 | 2.00 |
| 12×12 | 0.0230 | 0.5840 | 0.0600 | 1.5200 | 52.2 | 2000 | 1.17 |
| 14×14 | 0.0230 | 0.5840 | 0.0480 | 1.2200 | 45.7 | 2000 | 1.17 |
| 16×16 | 0.0180 | 0.4570 | 0.0445 | 1.1300 | 50.7 | 2000 | 0.91 |
| 18×18 | 0.0170 | 0.4320 | 0.0386 | 0.9800 | 48.2 | 2000 | 0.86 |
| 20×20 | 0.0200 | 0.5080 | 0.0300 | 0.7600 | 35.9 | 2000 | 1.02 |
| 24×24 | 0.0140 | 0.3560 | 0.0277 | 0.7000 | 43.9 | 2000 | 0.71 |
| 30×30 | 0.0130 | 0.3300 | 0.0203 | 0.5200 | 37.4 | 2000 | 0.66 |
| 35×35 | 0.0110 | 0.2790 | 0.0176 | 0.4500 | 38.1 | 2000 | 0.56 |
| 50×50 | 0.0090 | 0.2290 | 0.0110 | 0.2800 | 30.3 | 2000 | 0.46 |
| 70×70 | 0.0065 | 0.1650 | 0.0078 | 0.2000 | 30.0 | 2000 | 0.33 |
| 90×90 | 0.0050 | 0.1270 | 0.0061 | 0.1600 | 31.1 | 2000 | 0.25 |
| 100×100 | 0.0045 | 0.1140 | 0.0055 | 0.1400 | 30.4 | 2000 | 0.23 |
| 120×120 | 0.0037 | 0.0940 | 0.0046 | 0.1168 | 30.7 | 2000 | 0.19 |
| 150×150 | 0.0026 | 0.0600 | 0.0041 | 0.1041 | 40.2 | 2000 | 0.12 |
| 180×180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 2000 | 0.12 |
| 250×250 | 0.0016 | 0.0400 | 0.0024 | 0.0610 | 36.5 | 2000 | 0.08 |
| 300×300 | 0.0016 | 0.0400 | 0.0018 | 0.0446 | 27.8 | 2000 | 0.08 |
| 325×325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30.1 | 2000 | 0.07 |
| 500×500 | 0.0010 | 0.0254 | 0.0010 | 0.0254 | 25.0 | 1500 | 0.05 |
| 635×635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25.0 | 1300 |
|
7. Detailed Images:
Product Tags:
|
|

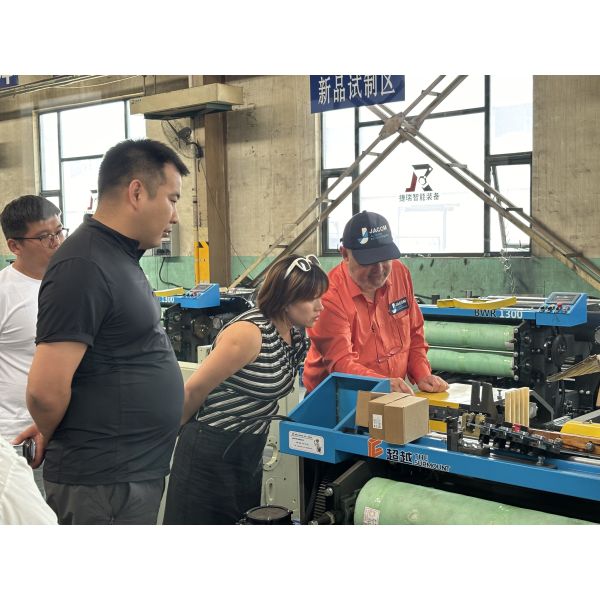

Stainless Steel Full CNC Light Duty Metal Wire Mesh Machiery Images
|
